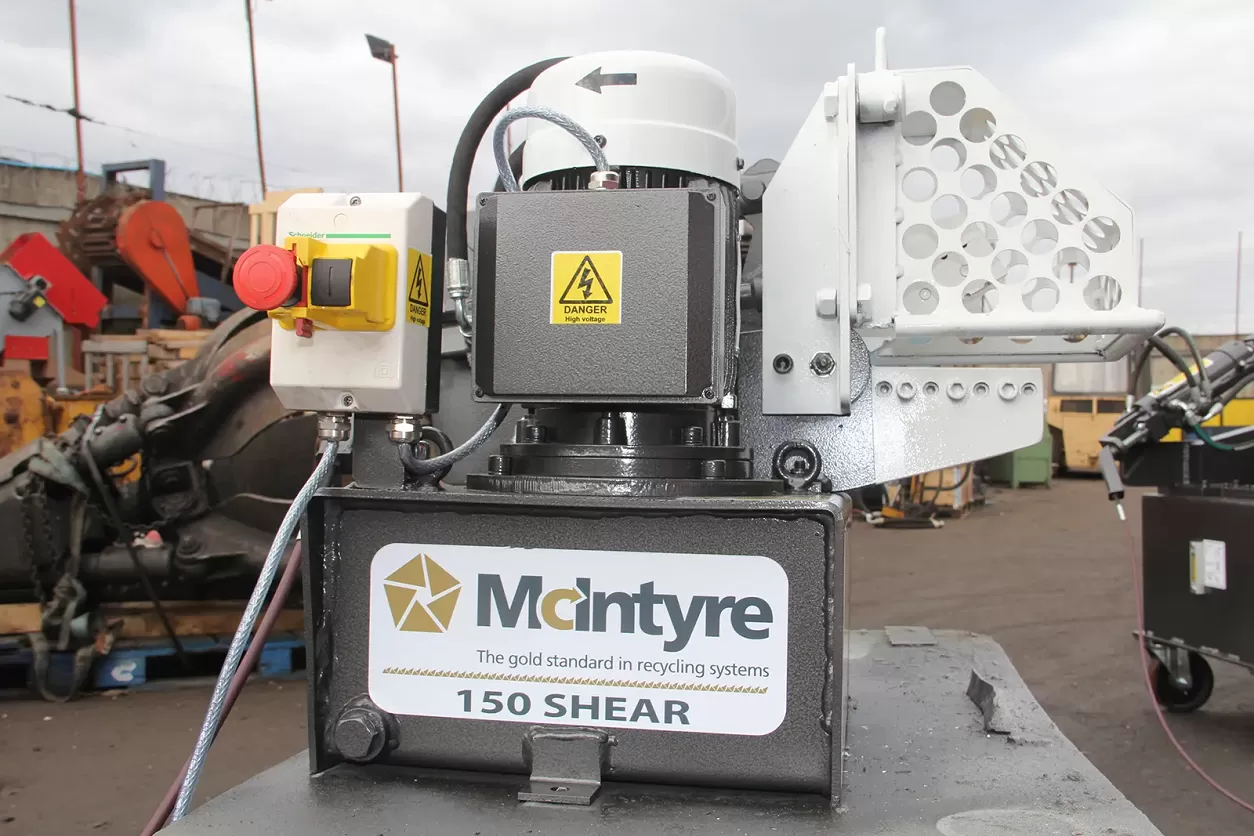

JMC- McIntyre 150 Alligator Shear
The McIntyre 150 alligator shear is small enough to be moved easily around the yard. All you need to put the McIntyre 150 alligator shear through its paces is a 13 amp socket and a suitable bench.
It’s ideal for tackling lighter metal shearing but it’s powerful enough to tackle gun metal valves, bath taps, cable and other non ferrous scrap metal cleaning operations.
Opening and closing the jaws is controlled from a movable foot pedal. The cutting blades return immediately to the open position once pressure on the foot pedal is released, thereby increasing operator safety.
The JMC McIntyre 150 alligator shear has a 150mm, 6″ blade, and can cut 25mm, 1″, mild steel round bar. Single cuts, nibbling and cracking are all easy with the fine control available. The operator’s hands are free to manipulate the material being cut and there’s a simple stroke adjustment system.
New JMC 150 shears come with an operator’s manual, cable and plug and also carry a 12 month parts warranty. Used JMC shears are fully reconditioned and have a three month parts warranty.
Type:shear alligator
Make:JMC
150 Shear

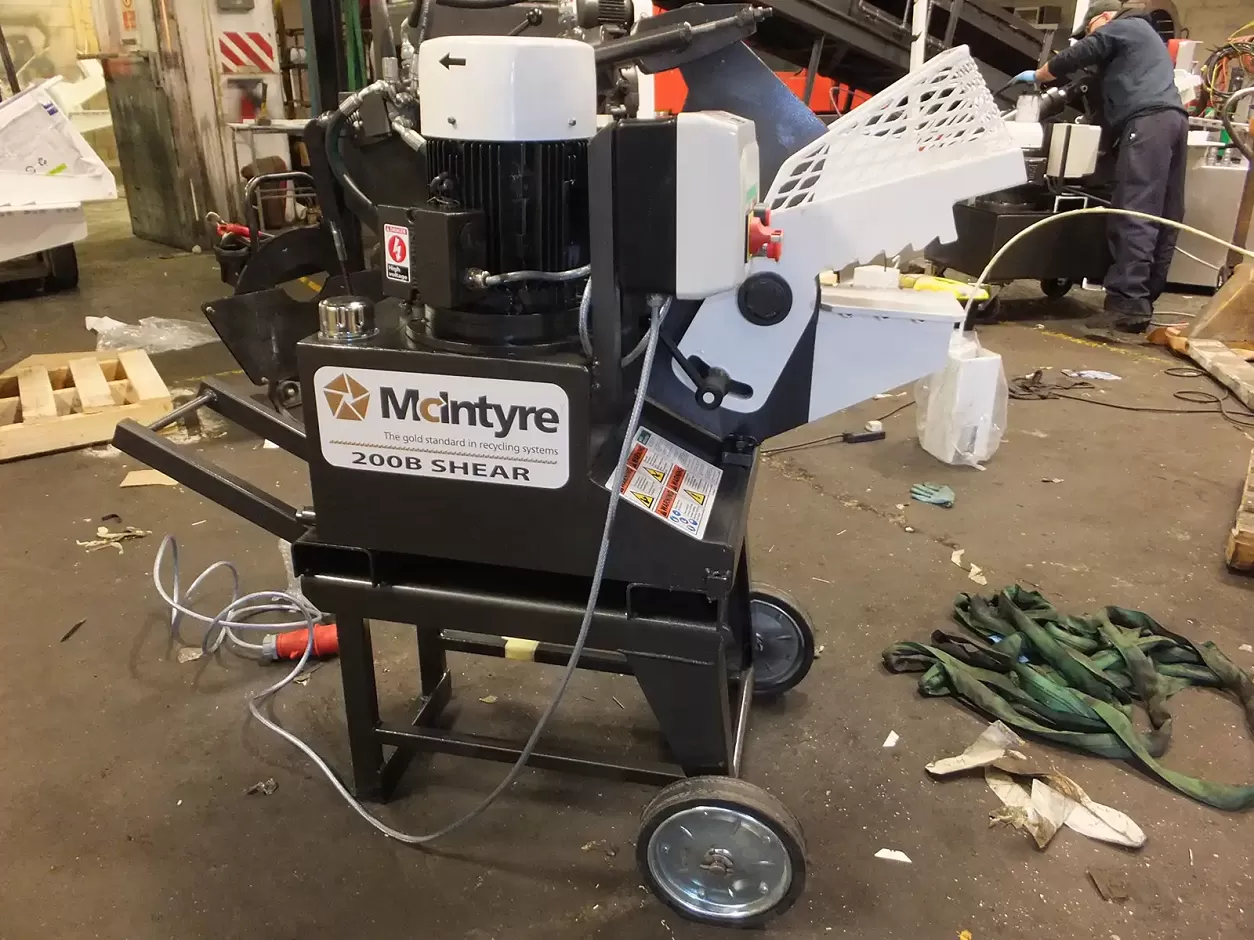

McIntyre 200B Alligator Shear
A versatile 8″ blade alligator shear which may look small, but it has a big cutting capacity. If the metal you want to cut fits into the jaw of a 200B then, in most cases, it will cut it.
The 200B alligator shear is suitable to use on a bench top but most people opt for a wheeled stand.
JMC has designed this 8″ shear with a staggering cutting force which is much higher than other machines of a similar size on the market today.
It will cut 42mm, 1.65″ mild steel round bar and the force of the shear plus its wide tip to tip opening means that the 200B can deal efficiently with a range of non-ferrous cleaning and sizing operations. It’s particularly good dealing with larger electric cables and valves.
The jaws are controlled from a cable operated foot pedal. The greater the pressure applied, the greater the shear force. However, with operator safety in mind, the cutting blades return to the open position as soon as foot pressure is released.
There is also a manual hold-down clamp which prevents material kick back and maintains a safe distance between the operator and the blades.
200B Alligator Shear

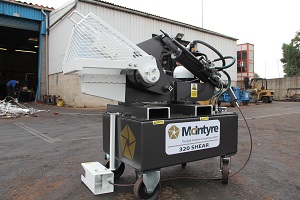

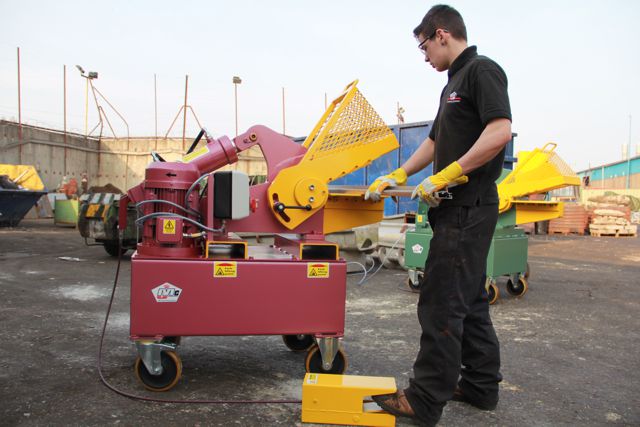

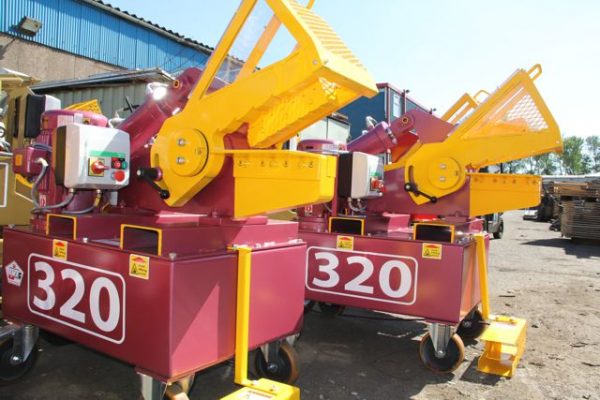

320 Hydraulic Alligator Shear
The 320 alligator shear is a must for any yard. It’s well established and recognised as the industry standard for all shears of this type. The 320 has maintained its dominance in a demanding market because of its strength, quality and reliability.
The 320 hydraulic alligator shear is equipped with a 320mm, 12.5″ inch, blade and is powerful enough to deal with a wide range of cutting and cleaning operations including; automotive scrap, whole gear boxes, cylinder heads and blocks, oversized gate valves, all the usual non ferrous metals separations and other materials such as plastic and rubber.
The 320 can also be used to cut ferrous metals and has a cutting capacity of 50mm, 2 inches of mild steel round bar.
The jaw is opened and closed by a moveable foot pedal. The cutting blades return to the open position as soon as pressure is released, thus increasing operator safety. Constant pressure ensures a continuous cutting action.
The 320 is available in both single and three phase versions. Overall, it’s cheap to run and maintain.
320 Shear

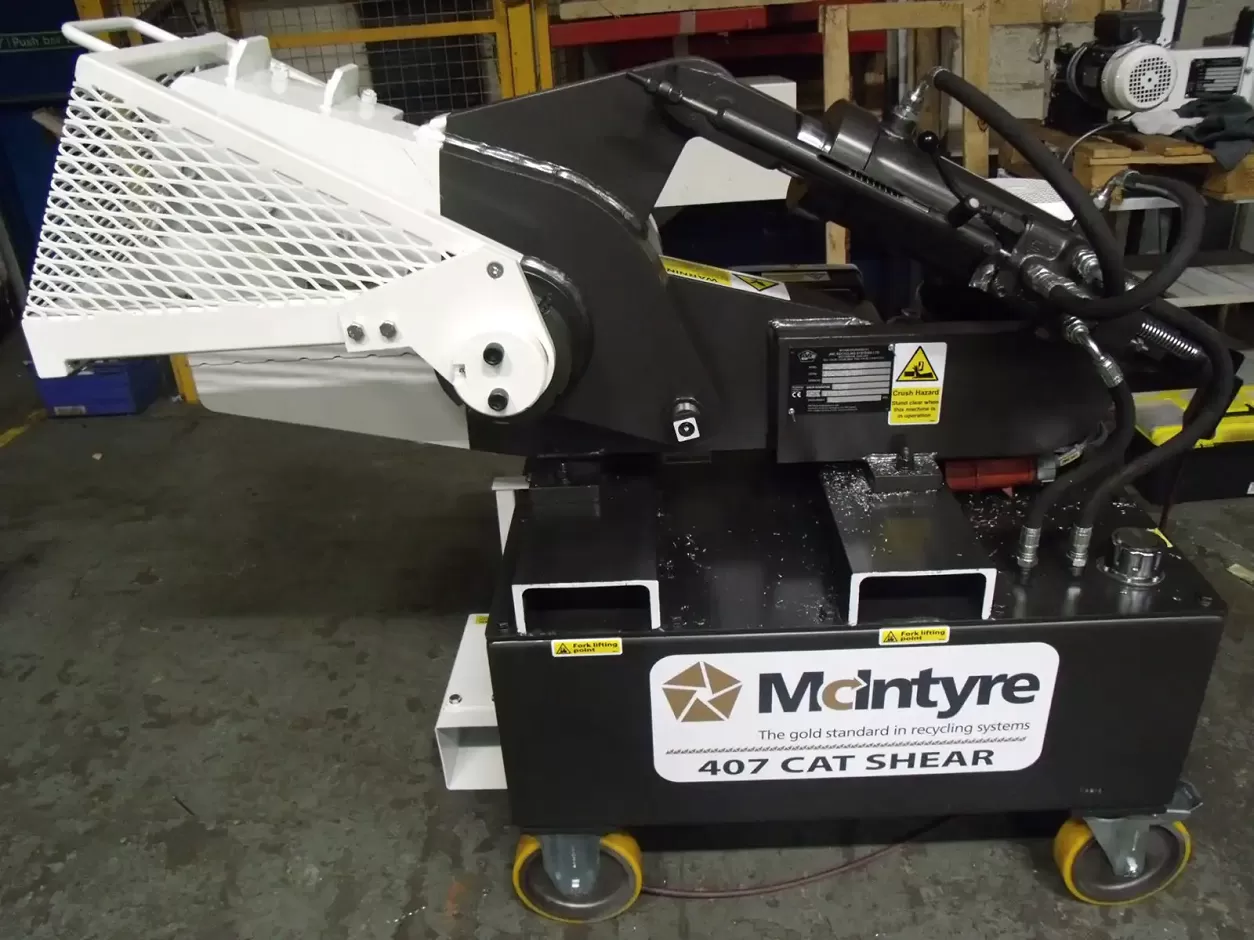

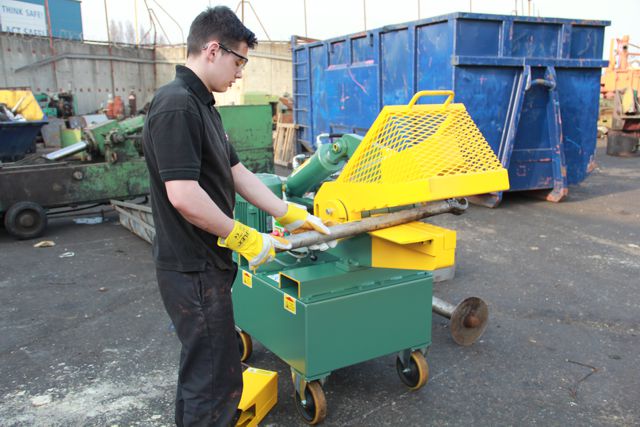

Mclntyre 407 Alligator Shear
The McIntyre 407 Alligator shear is a non ferrous shear which is both affordable and efficient.
It has a 407mm 16″ blade length and enough power and speed to handle a wide variety of cutting tasks. This versatile alligator shear was built originally for scrapyard use so is robust enough to withstand difficult working environments.
The McIntyre 407 non ferrous scrap shear can handle:
- Automotive scrap
- Whole gear boxes
- Cylinder heads and blocks
- Oversized gate valves
- The usual non ferrous metal cutting tasks.
- Handles ferrous metals if needed.
407 Cat Shear

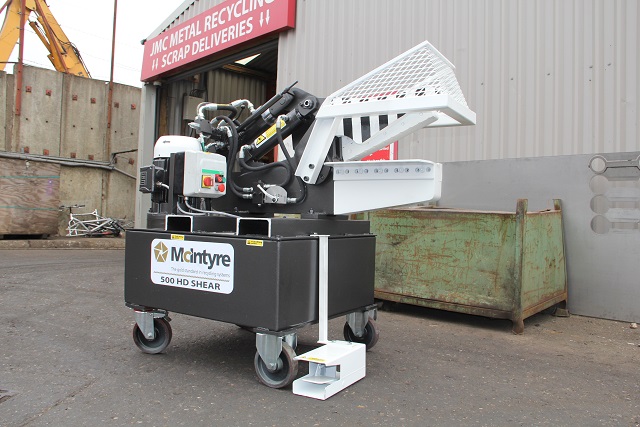

500HD Hydraulic Alligator Shear
Here’s a new generation hydraulic alligator shear which is faster and more powerful than any other machine of its size.
One of its most impressive features is an automatic hold down clamp with a 508mm, 20 inch, blade which makes light work of automotive aluminium scrap.
Complete gear boxes, cylinder heads and blocks, oversized gate valves and all non ferrous separations are all chopped with ease. It also works just as well with aluminium extrusion, window frames, car tyres and car wheels.
The 500HD hydraulic alligator shear is operated with a moveable foot pedal. Operators can select a continuous cutting action by keeping pressure on the foot pedal. As soon as pressure is released the cutting blades return immediately to the open position, thus increasing operator safety.
The shears can be moved around your yard because it has locking rubber wheels. The 500HD can be supplied as an electric or diesel shear which comes with a 2-cylinder Lister Petter engine.
The 500 HD is one of a range of alligator shears to suit operations of all sizes.
500HD

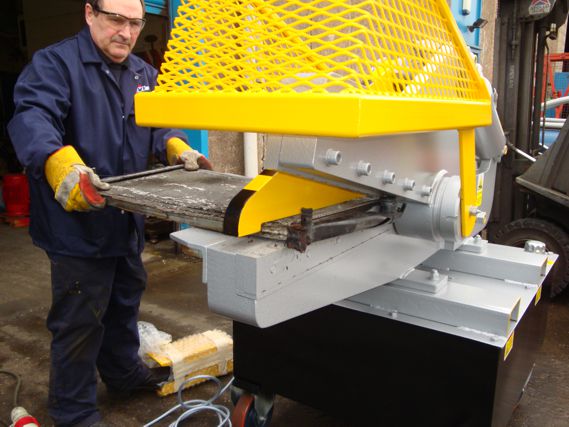

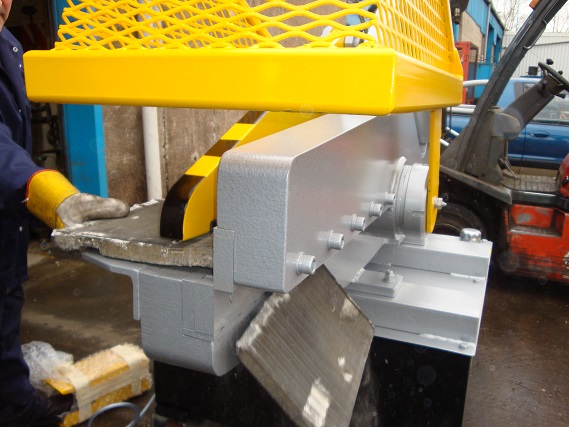

McIntyre 600HD alligator shear
The 600HD alligator shear is a fast and strong metal cutting shear with an extended hold down clamp, making it ideal for every cutting and cleaning task whether cable, plastic sections, or window frames.
Its cutting capacity is up to 63mm, 2″ inch mild steel round bar.
The 600HD alligator shear is probably best known for dealing with car radiators. It was designed and built following requests from customers who were looking for a shear with a longer blade to cut larger items such as car radiators which it cuts through in one pass.
The automatic hold down clamp holds material in place during the cutting cycle and prevents kick back which speeds up processing and improves operator safety.
As with all McIntyre shears, opening and closing the jaws is controlled from a moveable foot pedal. As soon as the foot pedal is released, the cutting blades return to the open position. However, a continuous cutting action can be achieved by keeping foot pressure on the pedal.
The 600HD can be supplied with an electric motor or with a 2-cylinder diesel engine.
600HD
500HD Hydraulic Alligator Shear
Here’s a new generation hydraulic alligator shear which is faster and more powerful than any other machine of its size.
One of its most impressive features is an automatic hold down clamp with a 508mm, 20 inch, blade which makes light work of automotive aluminium scrap.
Complete gear boxes, cylinder heads and blocks, oversized gate valves and all non ferrous separations are all chopped with ease. It also works just as well with aluminium extrusion, window frames, car tyres and car wheels.
The 500HD hydraulic alligator shear is operated with a moveable foot pedal. Operators can select a continuous cutting action by keeping pressure on the foot pedal. As soon as pressure is released the cutting blades return immediately to the open position, thus increasing operator safety.
The shears can be moved around your yard because it has locking rubber wheels. The 500HD can be supplied as an electric or diesel shear which comes with a 2-cylinder Lister Petter engine.
The 500 HD is one of a range of alligator shears to suit operations of all sizes.

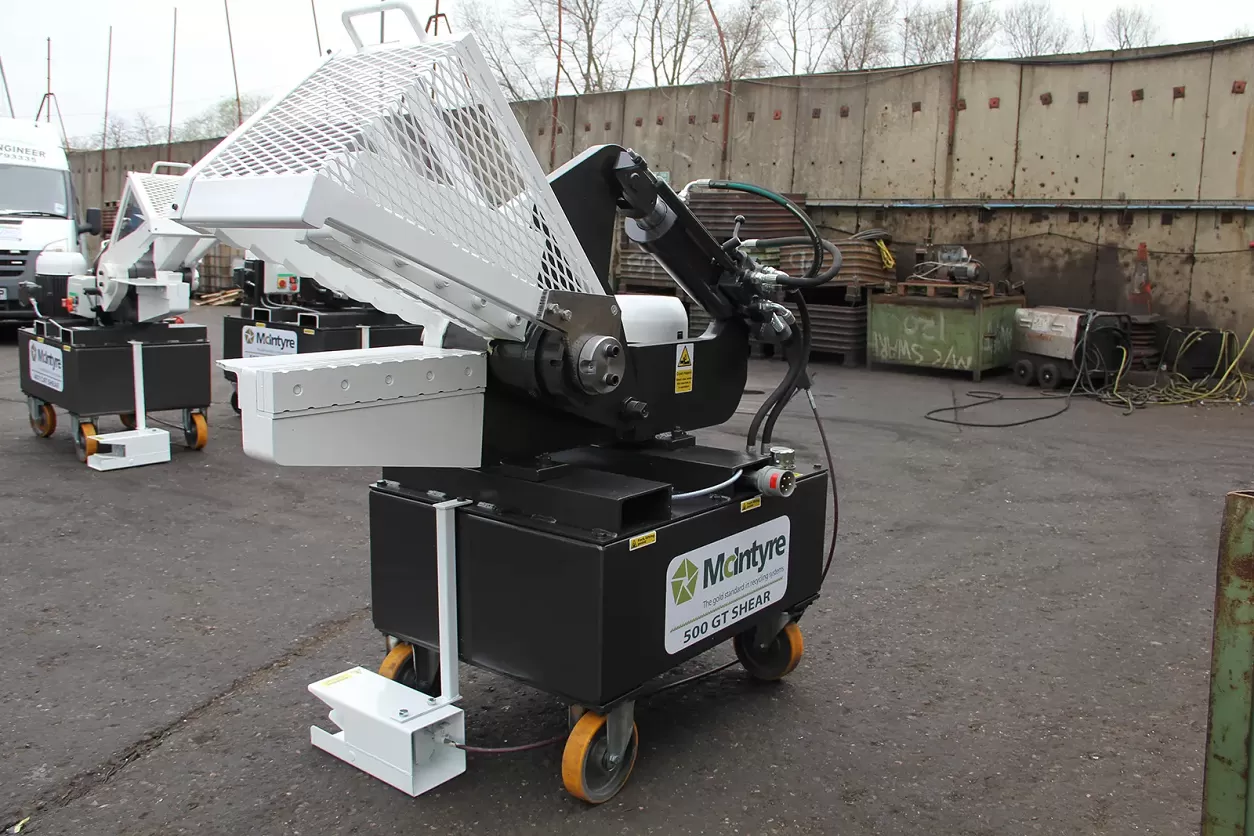

500 GT Shear
The 500 GT is designed for those needing just a bit more blade length without an equivalent increase in price .

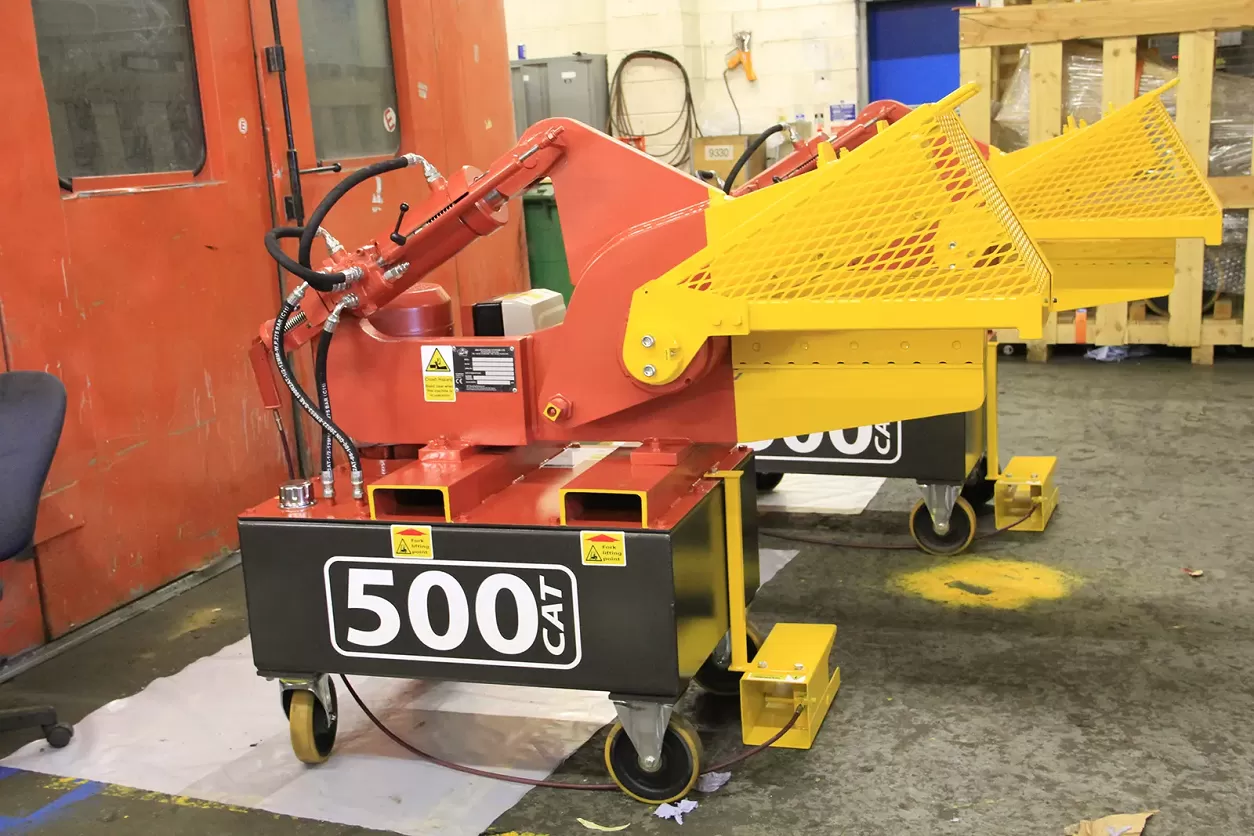

The 500 GT gives customers just a bit more blade length without a big price increase. It is powerful enough to handle most non-ferrous cleaning and sizing operations, and can also be fitted with an optional bracket enabling it to double up as a catalytic converter shear.
- longer blade length
- 110 Tonne shear force
- optional catalytic converter bracket
- cost-effective
Machine dimensions: 1690 × 712 × 1400mm
Cutting Capacity: 56mm (2.25”) (Round Bar) 45mm (1.75”) (Square Bar)
Cut control: Single Cut repeating
500 GT Shear
