Powerful and high quality

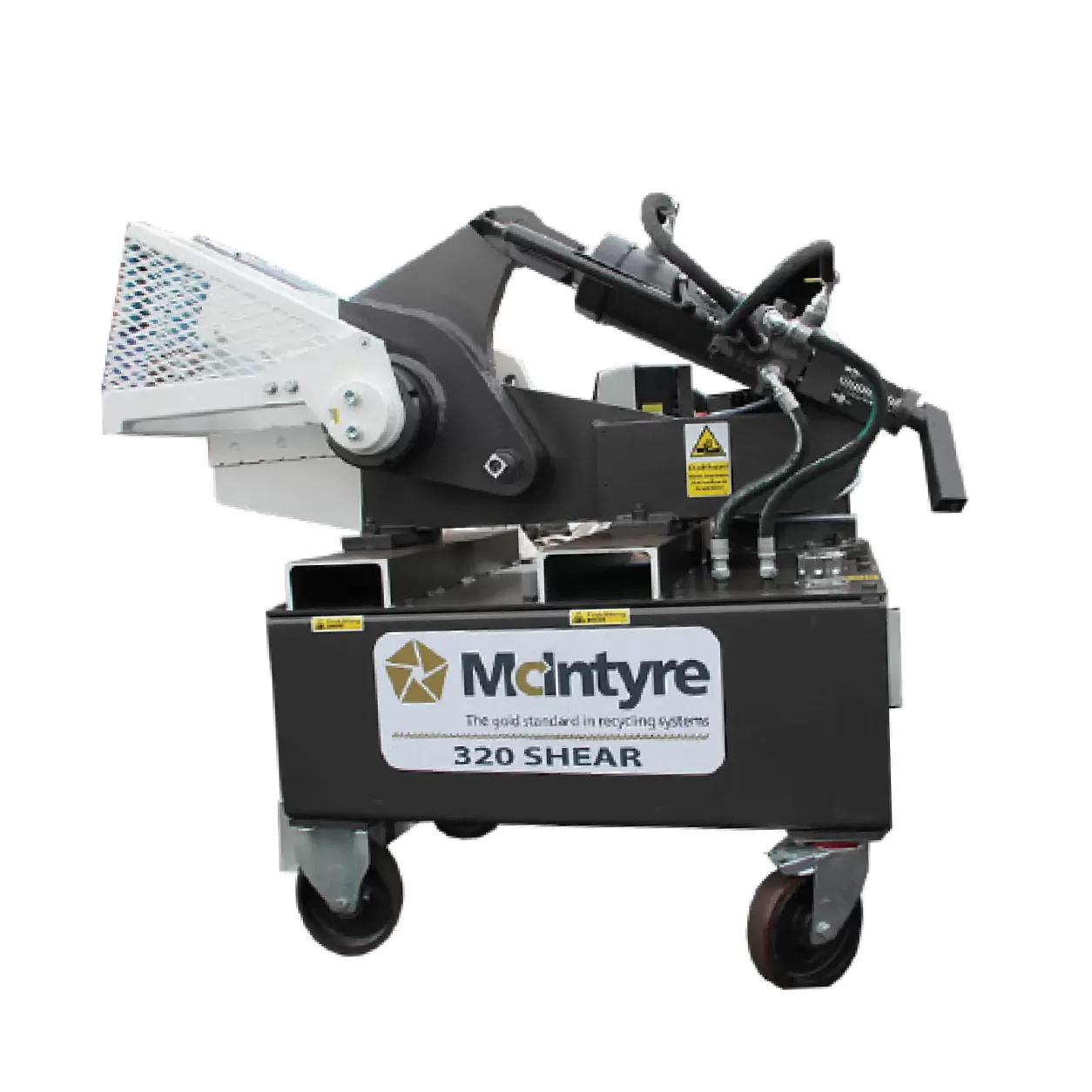

The McIntyre 320 Shear has maintained dominance in a demanding market due to its strength, quality and reliability. The 320 is powerful enough to deal with a wide range of cutting and cleaning operations and is able to handle; automotive scrap, whole gear boxes, cylinder heads and blocks, oversized gate valves and of course all the usual non ferrous metal separations. The 320 can also be used to cut ferrous metals.
Technical Data:
Machine dimensions: 1460 × 712 × 1322mm
Blade Length: 320mm / 12.5”
Tip to tip opening: 165mm / 6.5”
Shearing height: 910mm / 35.8”
Weight with oil: 680kg
Oil capacity: 200 Litres / 44 Gallons
Noise Level: 75 +/- 3dBA
Cut control: Single Cut repeating
Standard Electrical Requirements: 32A / 3ph / 380-415v / 50Hz
Power Rating: 7.5 kW / 10hp
Motor speed: 1450 rpm
Max system Pressure: 172 Bar / 2500 psi
Max Shear force: 90 Tonnes
Fully open cut speed: 16 dry cycle cuts per min
40% Stroke cut speed: 41 dry cycle cuts per min
Cutting Capacity: 50mm (2”) Round Bar / 40mm (1.5”) Square Bar
Type:shear alligator
Make:mcintyre
